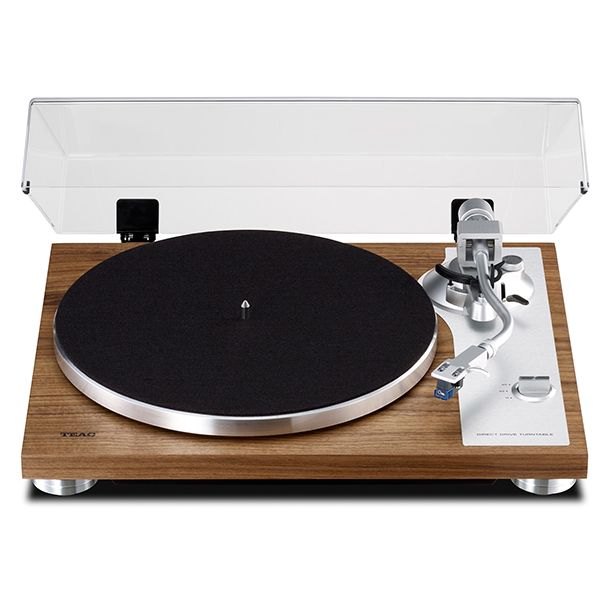

A sleek motor, developed exclusively for direct-drive turntables
The TN-4D-SE uses a sleek, brushless DC motor, offering crystal-locked speed accuracy, regulated by a computer-controlled feedback circuit and achieving low wow-and-flutter levels for a direct drive turntable, especially one with such a stylish, low-profile design.
Knife-edge, pivot-point tone-arm bearings
In collaboration with SAEC Corporation, a world-famous, high-end tonearm manufacturer, the TN-4D-SE's tonearm employs a knife-edge, pivot-point bearing. Unlike the case for tonearms with conventional bearings, any fine vertical movements encountered by this tonearm actually help in delivering a more dynamic sound with excellent resolution. The S-shaped tonearm also employs a universal headshell fitting, allowing users to quickly and easily swap cartridges/headshells, and supports a wide range of cartridge weights (from 14 - 23g / 0.5 - 0.8 oz.)
Precision anti-skating and stylus-pressure adjustment
As you might expect, the tonearm is equipped with a counterweight, for precise stylus-pressure adjustment, and an anti-skating mechanism.
Pre-installed Oyster cartridge by SUMIKO
The TN-4D-SE comes with a well-regarded Oyster MM cartridge from SUMIKO – a legendary American cartridge manufacturer. Regardless of the type of music, the Oyster cartridge delivers a powerful but insightful performance.
Built-in PHONO EQ amplifier supporting MM cartridges
The TN-4D-SE comes with a built-in PHONO EQ amplifier that allows you to directly connect the turntable to the line-level inputs of your existing hi-fi system. The NJM8080 IC from New Japan Radio Corporation is employed for op-amp duties, bringing up the level of the tiny signals received via the cartridge up to LINE level strength without any loss of quality.
Die-cast aluminium platter
In conjunction with the newly-developed motor, the high inertia, die-cast aluminium platter helps to achieve better speed stability.
Insulating feet with excellent shock absorption
The insulating feet comprise a machined aluminium shell topped with a rubber cushion that is fixed to the high-density MDF plinth. Thanks to their excellent shock absorption characteristics the TN-4D-SE is very resistant to acoustic feedback.
2-speed turntable for 33-⅓ and 45 rpm
The TN-4D-SE supports 33-⅓ and 45 rpm for LP and EP records. Our insistence on quality engineering can even be seen in the construction of the rotary control for start-up/speed selection, formed of machined aluminium.
Main Features:
- Direct-drive analog turntable
- Crystal-locked speed stability, thanks to a new brushless DC motor with feedback control
- Die-cast aluminium platter
- Knife-edge, pivot-point tonearm base, designed by high-end tonearm manufacturer SAEC
- Multi-layer piano black or natural walnut veneer finish
- Built-in PHONO EQ amplifier for high-quality sound (PHONO/LINE switchable)
- Audiophile-grade NJM8080 op-amp used in PHONO EQ stage
- 2-speed drive offering 33-⅓ and 45 rpm
- Gold-plated oxidation-resistant output connectors
- Oyster MM cartridge by SUMIKO
- Shock-absorbing insulating feet
- GND terminal
- RoHS compliant
*This product does not have a USB digital output.
Specifications:
Turntable section:
- Type: Direct Drive
- Motor: Brush-less DC Motor
- Rotation Speeds: 33-⅓ rpm, 45 rpm
- Wow-and-Flutters: 0.1%
- S/N Ratio: 67dB or higher (A-weighted, 20kHz LPF)
- Turntable (Platter): Material - Aluminium Die-cast, Diameter - 30cm
Tone-arm section
- Type: S-shaped, Static-balanced
- Effective Length: 223mm
- Needle Pressure Range: 0g to 5.0g
- Compatible Cartridge Weight: 3.0g to 12.0g, 14g to 23g (including Head-shell)
Head-shell and Cartridge sections
- Type: MM-type (SUMIKO Oyster factory installed)
- Output Voltage: 4.0mV (1kHz)
- Needle Pressure: 1.5 to 2.5g (appropriate value: 2.3g)
- Weight: 5.3g
- Head-shell weight: 11g (including nuts, screws, and wires)
- Compatible Stylus: Styluses for SUMIKO Oyster

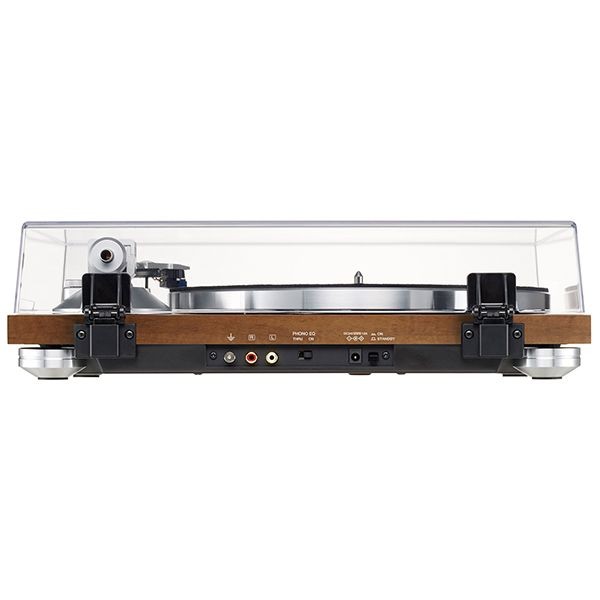

Analog Outputs
- Connector: RCA Pin jack × 1 pair (PHONO/LINE switchable)
- Output Voltage: PHONO 4.0mV (1kHz), LINE 224mV (–13dBV)
Other
- Operating Power: AC 100 to 240V, 50/60Hz
- Power Consumption: 2W
- Standby Power: 0.5W or less
- Overall Dimensions (W×H×D): 420 × 117 × 356 mm / 16.5" × 4.6" × 14.0"
- Weight: Approx. 6.1kg / 13.5 lbs.
- Included Accessories: Felt Mat, EP Adapter, Counter Weight, Head-shell (SUMIKO Oyster installed), Platter, Dust Cover, Hinges × 2, RCA Audio cable with GND terminal, AC Adapter (GPE036W-24015), Owner's Manual (including Warranty Card)
Product Code: TN-4D-SE/WA
