Audio-Technica AT-LP5X Fully Manual Direct Drive Turntable

£x.xx

Manufacturer: Audio Technica

Login to view price

Product Information

Building on Audio-Technica’s analogue heritage and over 50 years of Japanese audio design, the AT-LP5x features upgraded technology while keeping the contemporary style and acclaimed performance of its predecessor, the AT-LP5.

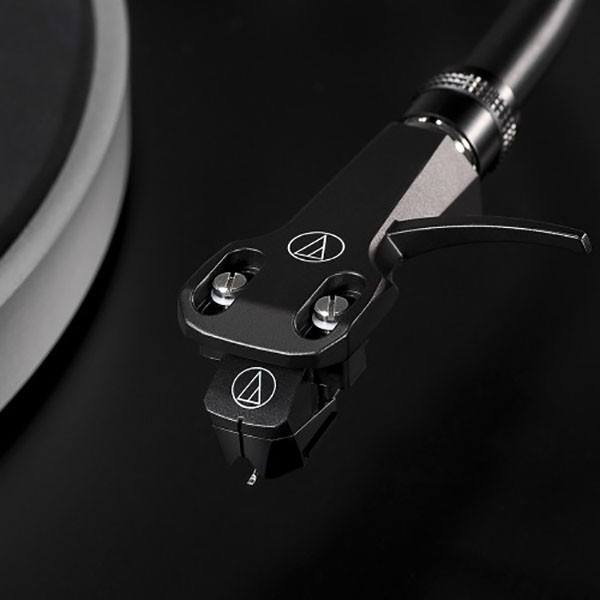

The LP5x retains the J-shaped tonearm, a design inspired by the classic Audio-Technica models of the 1960s and ’70s, and features a metallic gimbal suspension system and precision bearings to mitigate tracking errors. The tonearm also includes an adjustable counterweight and anti-skate control and comes fitted with a lightweight (9.3g) AT-HS6 headshell and the black AT-VM95E Dual Moving Magnet stereo cartridge.

Constructed of anti-vibration damping materials with heavy-mass metal chassis inserts, the AT-LP5x turntable has been designed to limit low-frequency acoustical feedback. Its precision-machined, die-cast aluminium platter is powered by a direct-drive, low-noise motor, ensuring stable, on-axis rotation at 33-1/3, 45 and 78 RPM. A 5 mm thick rubber damping mat, which isolates from low-frequency feedback while providing a highly stable surface for all LP formats, tops the platter.

The AT-LP5x features a built-in switchable MM/MC phono/line preamp that enables it to connect directly to a computer, home stereo, powered speakers and other components that have no dedicated turntable input. The selection of MM/MC cartridges allow for an easy upgrade to a moving coil with additional equipment. The turntable is also equipped with a USB output for direct connection to a computer.



Features

  • Direct-drive, low noise motor
  • Fully manual operation with three speeds: 33-1/3, 45 and 78 RPM
  • AT-VM95E Dual Moving Magnet stereo cartridge (black) with replaceable stylus
  • Lightweight AT-HS6 headshell
  • J-shaped tonearm, modelled after original Audio-Technica designs from the 1960s and ’70s, are engineered to minimize tracking errors
  • Switchable MM/MC built-in pre-amplifier and line enables connection to components with or without a dedicated phono input
  • Anti-resonance, die-cast aluminium platter
  • Heavy rubber damping mat for improved low-frequency reproduction
  • AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
  • Elegant matte black finish
  • Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, USB cable
  • Included dust cover and mounting hardware



Specifications

Drive Method

Direct Drive

Type

3-speed, fully manual operation

Motor

DC motor

Speeds

33-1/3 RPM, 45 RPM, 78 RPM

Turntable Platter

Die-cast aluminium

Starting Torque

>1.0 kgf.cm

Braking System

Electronic brake

Wow and Flutter

<0.2% WRMS (33 RPM) at 3 KHz

Signal-to-Noise Ratio

>50 dB

Output Level

PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec LINE 250 mV nominal at 1 kHz, 5 cm/sec

Phono Pre-Amp Gain

36 dB nominal, RIAA equalized MC: 56dB nominal, RIAA equalized

USB Function

A/D, - 16-bit 44.1 kHz or 48 kHz USB selectable; Computer interface - USB 2.0 compliant Windows 7 or above, MAC OS X or above

Power Supply Requirements

100-240V AC, 50/60 Hz

Power Consumption

3 W

Dimensions

450.0 mm (17.72") W x 352.0 mm (13.86") D x 157.0 mm (6.18") H

Weight

7.3 kg (16.1 lbs.)

Accessories Included

AT-VM95E Dual Moving Magnet stereo cartridge (black) with replaceable stylus; AT-HS6 lightweight headshell; AC adapter; dual RCA (male) to dual RCA (male) stereo cable; 45 RPM adapter; USB cable; dust cover with hinges.







Product Code: AT-LP5X
