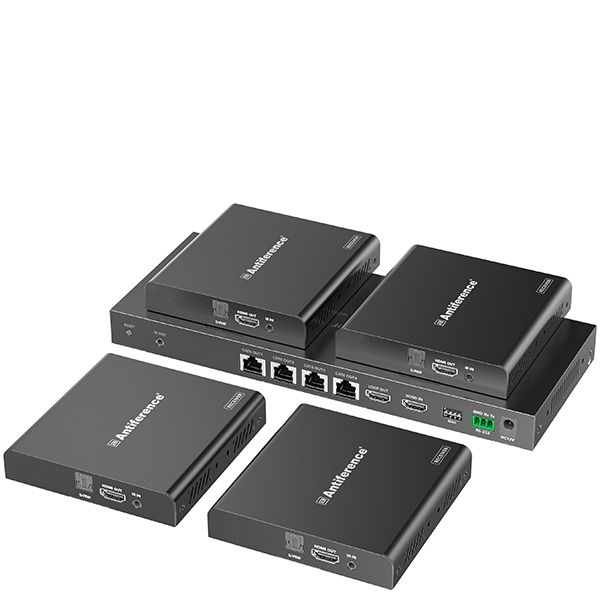

This 4K HDMI splitter over CAT6 takes a single HDMI source and can split to up to 5 displays using the 4 CAT6 outputs and 1 HDMI loop output. 4K or 1080p resolutions can be sent up to 70m over the CAT6 cable runs to the PoC receivers units at the displays.
The splitter kit features an auto-scaling function to enable a 1080p screen to be connected to the system and receive audio and video from a 4K source. The system downscales as required.
the PoC receivers feature an optional optical audio output allowing audio to be routed to either the optical S/PDIF connection or the HDMI.
IR control is also included to allow remote control of the source.
Product Description
- 18Gbps 4K HDMI splitter over CAT6
- Auto-scaling function
- HDR support
- 70m range over CAT6
- HDMI loop out
- PoC receivers
- Audio output selector on receiver
- IR control
- EDID management system
- Complete kit with receivers included
Downloads
HDMI0104SCATV3 User Guide
Product Code: HDMI0104SCATV3
